点击数:1812RN系列电缆卷筒

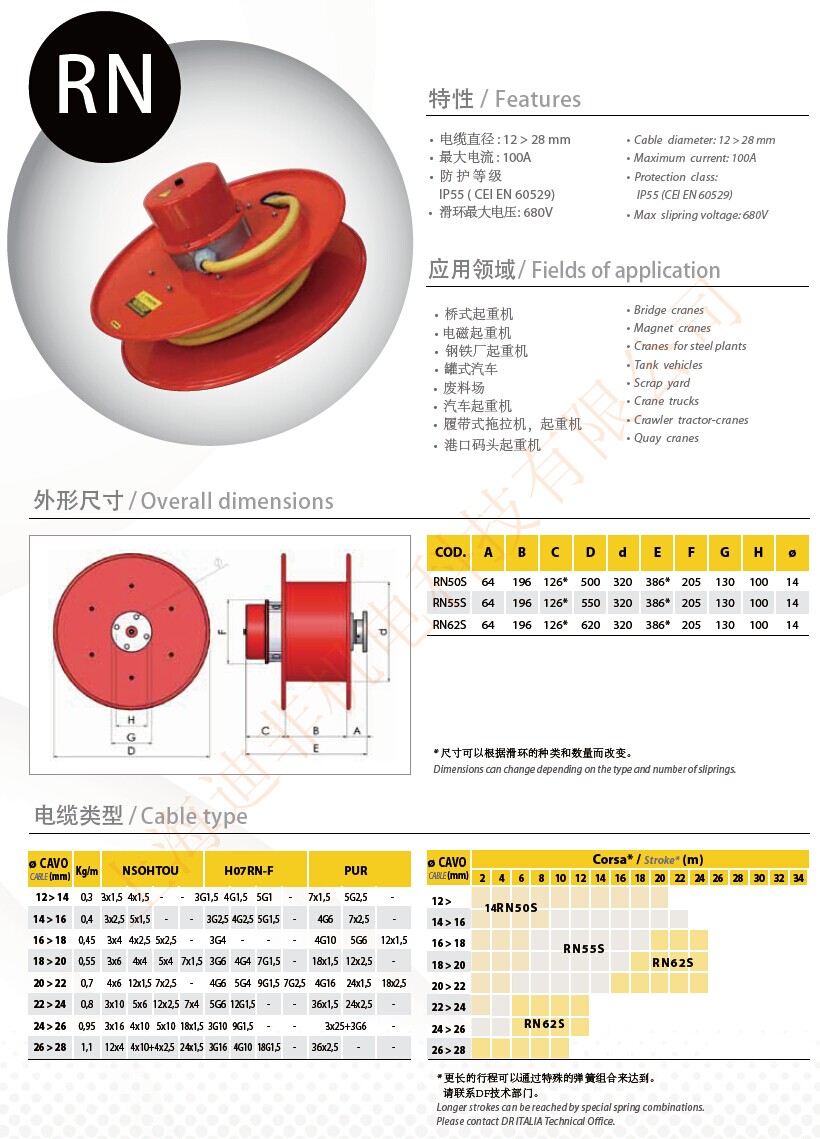

RN系列电缆卷筒/RN series cable reels


弹簧电缆卷筒是由阿基米德螺旋弹簧操作,具有广泛的使用性,是用于将电力供给移动设备最有效及最廉价的解决方案。电缆被缠绕在卷筒中,卷筒是用金属片焊接而成,一个或多个弹簧放置于圆筒柱内,弹簧钩挂在旋转轴上,当电缆被拉出时,弹簧被加载,并产生用于反绕电缆所需的扭矩,如遇突然返回,弹簧会自动脱开,避免损坏。


该电缆卷筒没有配备电缆(标准),电缆和连接器可根据要求提供。

The cable reels are not equipped with cable as standard, Cable and connecters are available on request.



主要特性/Main Features:

  • 电缆直径:6至42mm
  • 最大电流:20A-300A
  • 坚固耐用的钢架
  • 防腐蚀聚氨酯喷漆
  • 防护等级:IP55
  • 防振
  • 可提供不锈钢AISI版(应要求供应)
  • 可逆旋转方向(应要求供应)
  • 最大滑环电压:680V
  • Cable diameter : 6 to 42 mm
  • Maximum current : 20A to 300A
  • Rugged stell frame
  • Corrosion-proof polyurethan painting
  • Protection class : IP55
  • Vibration-proof
  • Available in stainless steel AISI version
  • Reversible rotation direction
  • Max supply voltage of slipring :680V


应用领域/Fields of Application

  • 实验室
    Laboratories
  • 加油站
    Petrol stations
  • 罐式运输车
    Tank vehicles
  • 桥式起重机
    Travelling cranes
  • 卡车
    Trucks
  • 车库
    Garages
  • 移动式起重机
    Mobile Cranes
  • 汽车起重机
    Crane trucks
  • 平台
    Platforms
  • 桥式起重机
    Bridge cranes
  • 磁铁起重机
    Magnet cranes
  • 钢厂起重机
    Cranes for steel plants
  • 废品收购站
    Scrap yards
  • 履带式拖拉机起重机
    Crawler tractor-cranes
  • 门式起重机
    Gantry cranes
  • 港口码头起重机
    Quay cranes

防护等级/Protection rate :可达 IP65


操作条件/ Opereting conditions

可在恶劣的环境和极端的操作条件下使用,可适用于下列条件:

The cable reels can be designed for use in severe environments and extreme operating conditions ; they can be suitable for the following conditions :

  • 温度范围 :-40℃ - +80℃
  • 防冷凝系统
  • 防震
  • 全不锈钢结构或特殊表面处理
  • 可使用在海洋或腐蚀性环境中
  • Temperature range : -40 - +80
  • Anti-condensation system
  • Vibration-proof
  • Total stainless steel construction or special superficial treatments
  • Use in marine or corrosive environment
